3. Cleanroom Door and Window
Semicon Door
| FRAME: | The door frames are made of Aluminium alloy (6063-T5). Rubber gaskets in the doorframe assures an improved airtight. Surface treatment, powder coated with grey white color or natural anodized. |
| DOOR LEAF: | 45mm thick (Opening single clear glass window size is equal to customer requirement). |
| SKIN MATERIAL: | Aluminium plate with a thickness of 0.8 mm and a PE roll coating finish (according to customer’s requirement). |
| INNER CORE: | Aluminium honeycomb with non-combustible Class B1. |
| ADHESIVE: | Rebon YB2002 (resin) mixed with YB8001 (hardener) Epoxy Paste Adhesive. Mixing Ratio, YB2002:YB8001=4:1 |
| DOOR ACCESSORIES: | Provided “ROCK” lever handle lock, a set of “ROCK” 4 inches stainless steel hinges and “GEZE” door closer. |
Steel Skin with Aluminium Honeycomb Core Panel Specification
| Description | Honeycomb Aluminium Panel |
|---|---|
| Non-Combustible | Class B1 |
| Thermal Conductivity | Less than0.044 W /mk |
| Resists Temperatures | >100°C |
| Water Absorption | Moderate |
| Compression Resistance | >100kPa |
| Aluminum Core Thickness | 0.06mm |
| Aluminum Honeycomb Diameter | D=17mm |
| Compressive Strength | >200 kPa |
| Flammable Gas Toxicity | Moderate |
| Fire Safety Performance: | British Standard 476: Part 7: 1997 |
| British Standard 476: Part 6: 1989 + A1:2009 | |
| (Tested on Core Materials) (Rating: Class 0) |

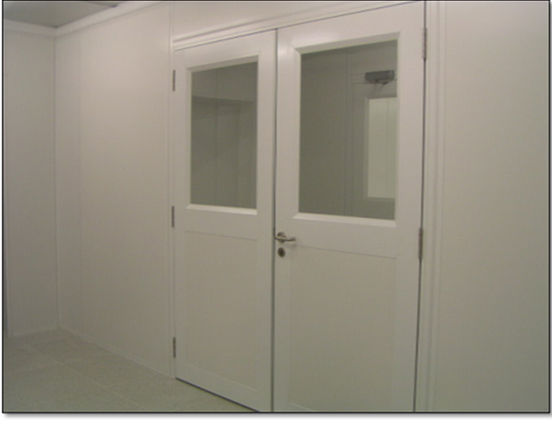

Figure 1: Double Door
Figure 2: Double Door
Figure 3: Single Door
Pharma Door
| FRAME: | The door frames are made of aluminium (6063-T5). Rubber gaskets in the doorframe assures an improved airtight. Surface treatment, powder coated with colors required by the customer. |
| DOOR LEAF: | 50mm thick with 2 layer bending edge Opening double glaze clear glass, window size is equal to the customer’s requirement, infill with desiccant to prevent condensation. |
| SKIN MATERIAL: | 0.5mm thick cold roll metal sheet with a PE roll coating finish, color (according to customer’s requirement). |
| INNER CORE: | Aluminium Honeycomb, Mineral Wool, Paper Honeycomb |
| ADHESIVE: | Rebon YB2002 (resin) mixed with YB8001 (hardener) Epoxy Paste Adhesive. Mixing Ratio, YB2002:YB8001=4:1 |
| DOOR ACCESSORIES: | Provided “ROCK” lever handle lock (steel handle or nylon handle), a set of “ROCK” 4inches stainless steel hinges or nylon hinges and "GEZE" door closer. |
Table 1: Steel Skin with Aluminium Honeycomb Core Panel Specification
| Description | Honeycomb Aluminium Panel |
|---|---|
| Non-Combustible | Class B1 |
| Thermal Conductivity | Less than 0.044 W /mk |
| Resists Temperatures | >100°C |
| Water Absorption | Moderate |
| Compression Resistance | >100kPa |
| Aluminum Core Thickness | 0.06mm |
| Aluminum Honeycomb Diameter | D=17mm |
| Compressive Strength | >200 kPa |
| Flammable Gas Toxicity | Moderate |
| Fire Safety Performance: | British Standard 476: Part 7: 1997 |
| British Standard 476: Part 6: 1989 + A1:2009 | |
| (Tested on Core Materials) (Rating: Class 0) |
Table 2: Steel Skin with Mineral Wool Core Panel Specification
| Description | Mineral Wool Panel |
|---|---|
| Fire Rating | >1 hour |
| Thermal Conductivity | Less than 0.044 W /mk |
| Resists Temperatures | >1000°C |
| Water Absorption | Moderate |
| Compression Resistance | >40 Kpa |
| Noise Absorbing, at 125 Hz | 0.07 |
| Density, kg/m3 | 100 kg/m3~120 kg/m3 |
| Compressive Strength | 150 kPa |
| Flammable Gas Toxicity | Moderate |
| Fire Safety Performance: | British Standard 476: Part 7: 1997 |
| British Standard 476: Part 6: 1989 + A1:2009 | |
| (Tested on Core Materials) (Rating: Class 0) |
Figure 1: Pharmaceutical GCD2 Door System Drawing

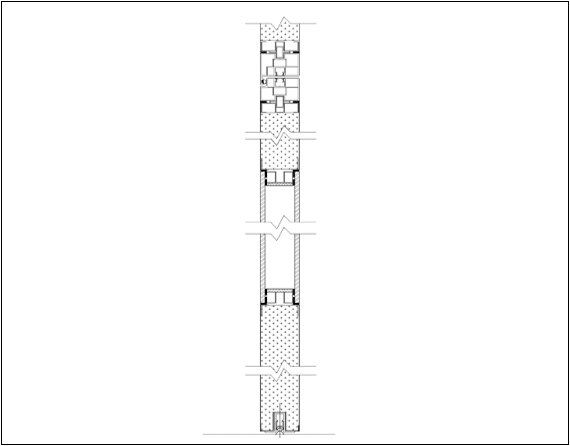

Figure 2: Pharmaceutical Door System Type GCD2 Section Drawing
Figure 2: Pharmaceutical GCD2 Door System Type GCD2 Section Drawing
